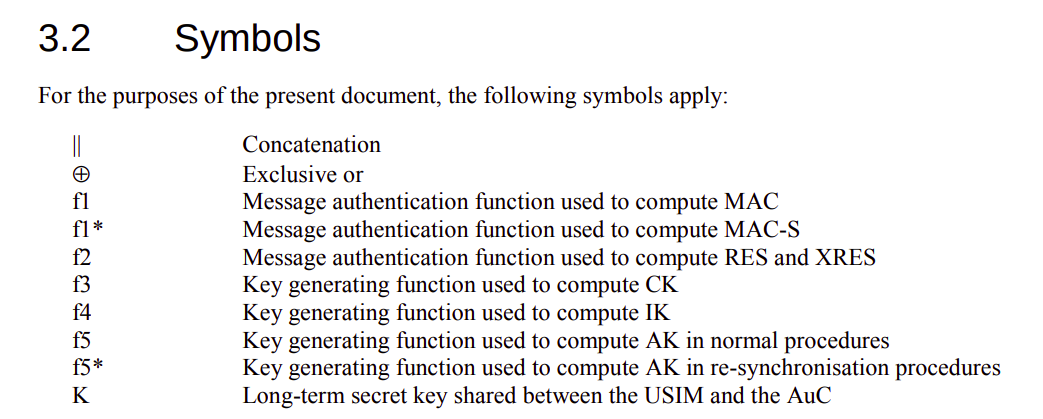

Source: https://www.etsi.org/deliver/etsi_ts/133100_133199/133102/11.05.01_60/ts_133102v110501p.pdf
Section 3.2

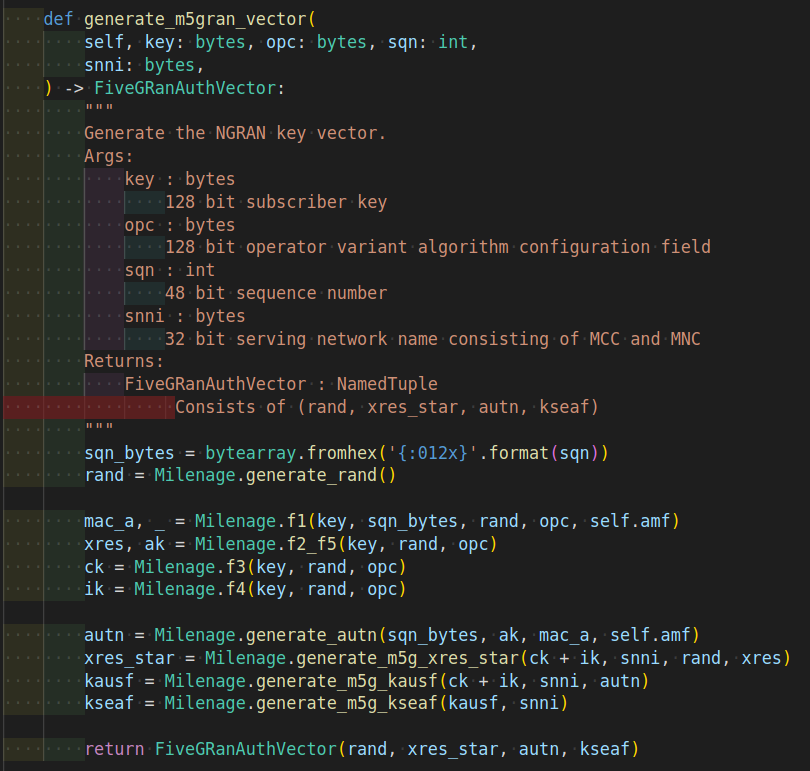

Generating 5G Authentication Vectors
Generating SQN
Source: https://www.etsi.org/deliver/etsi_ts/133100_133199/133102/11.05.01_60/ts_133102v110501p.pdf
Section: C.3.2, C.1.1.2 C.1.1.1
Source: https://github.com/magma/magma/blob/master/lte/gateway/python/magma/subscriberdb/processor.py#L323

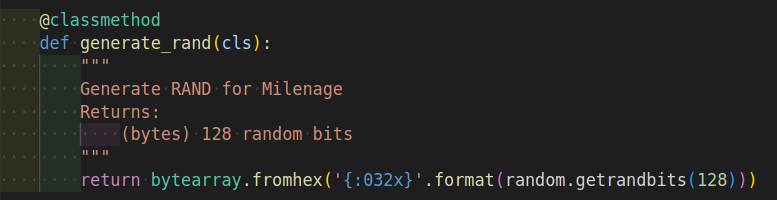

Generating RAND
Generating OPc

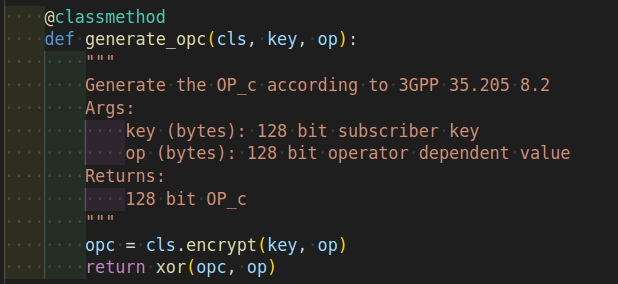

OPc(Derived operator code unique for each SIM) is derived from OP(Operator Code) and K(Secret Key). OP and K are first encrypted using AES-128 Encryption Algorithm in CBC(Cipher block Chaining) Mode and then the output(opc) and the OP are taken as input into the XOR function to derive OPc.
Source: https://www.etsi.org/deliver/etsi_ts/135200_135299/135206/09.00.00_60/ts_135206v090000p.pdf
Section 2.3
Generating MAC-A and MAC-S
MAC-A(Network Authentication Code) and MAC-S(Resynchronisation Authentication Code) are generated from Secret Key, SQN, RAND, OPc, and AMF using f1 and f1* cryptographic implementations through a single f1 function.
Source: https://www.etsi.org/deliver/etsi_ts/135200_135299/135206/09.00.00_60/ts_135206v090000p.pdf
Section 2.3
Generating XRES and AK
The XRES(Expected Response), and AK(Anonymity Key) are derived from RAND, OPc, and K using f2 and f5(or f5*) cryptography functions respectively. As the same inputs are used for deriving both parameters, a single operation is constructed for their implementation.
Source: https://www.etsi.org/deliver/etsi_ts/135200_135299/135206/09.00.00_60/ts_135206v090000p.pdf
Section 2.3
Generating CK

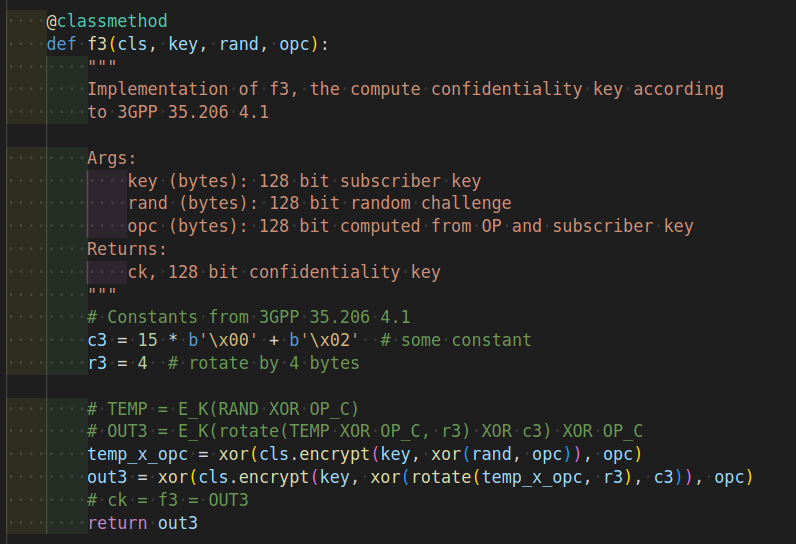

CK(Ciphering Key) is derived from the Secret Key(K), RAND, and OPc using the f3 cryptography function.
Generating IK
IK(Integrity Key) is derived from the Secret Key(K), RAND, and OPc using the f4 cryptography function.
Generating AUTN

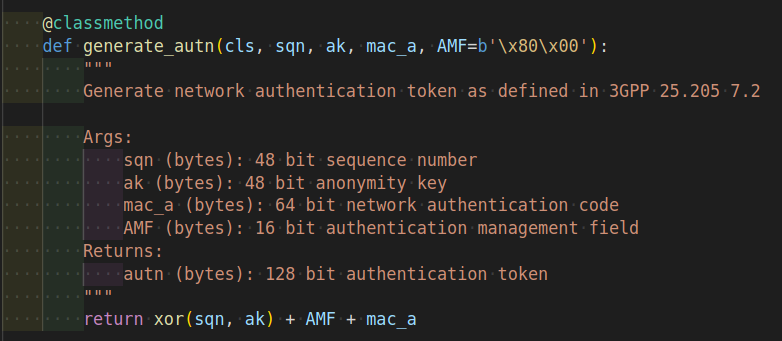

An authentication Token(AUTN) is generated from the SQN, AK, MAC-A, and AMF. SQN and AK are inserted into the XOR function and the output is combined with the AMF and MAC-A.
Generating XRES*

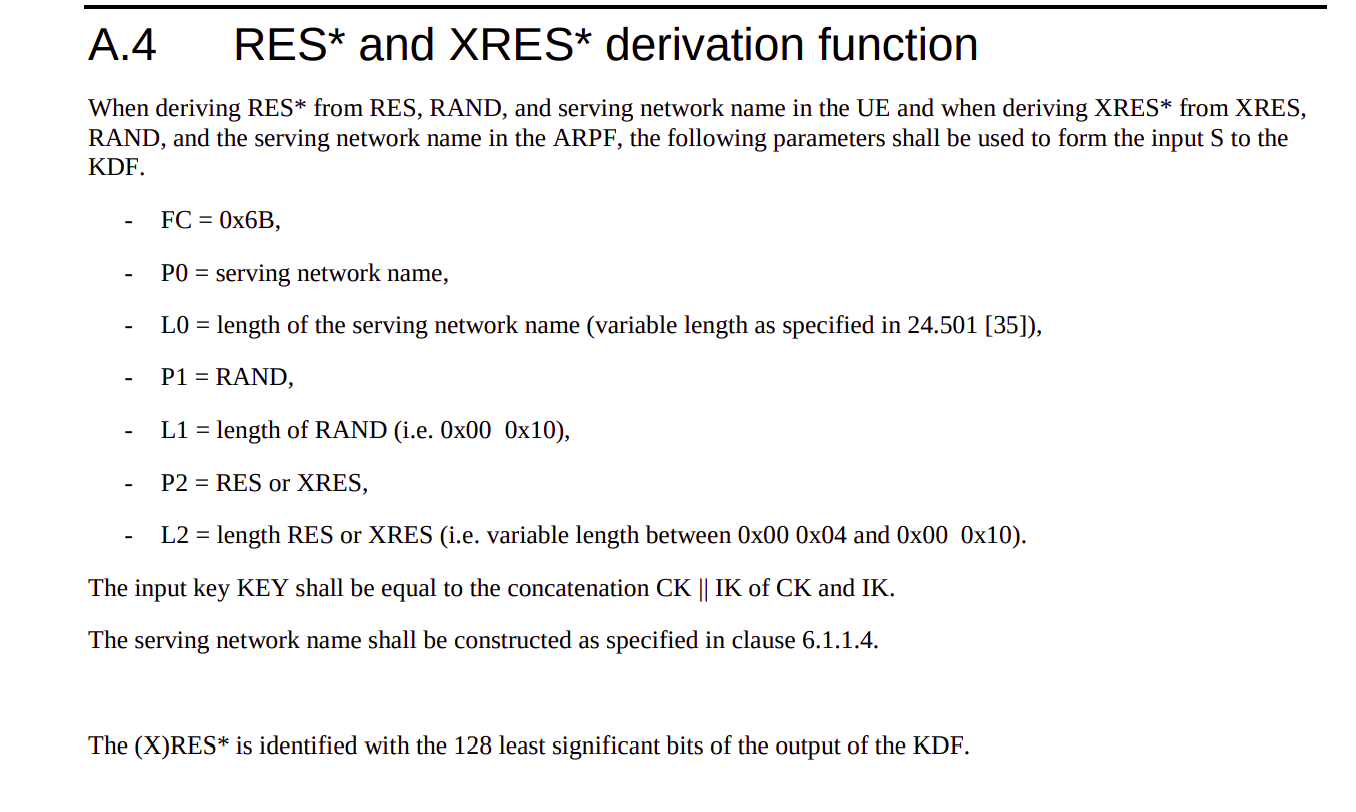

XRES* is generated from CK, IK, SNNi(Serving Network Name Identity), RAND, and XRES. First, a key is obtained by combining CK and IK then SNNi, RAND, and XRES length are converted into an array of bytes of size 2 with the first element stored as MSB(Most Significant Bit). Outputs from these operations are stored independently in different variables which are further combined with FC(it contains a byte object which is obtained from converting a hexadecimal string 6B) to form another new variable ‘S’.
Then, S and key are inserted as input into the HMAC-SHA-256 algorithm to obtain XRES*.
Source: https://www.etsi.org/deliver/etsi_ts/133500_133599/133501/16.03.00_60/ts_133501v160300p.pdf
Section A.4
Source: https://www.etsi.org/deliver/etsi_ts/133200_133299/133220/14.01.00_60/ts_133220v140100p.pdf
Section B.2.0
Source: https://github.com/blackberry/Python/blob/master/Python-3/Lib/hmac.py#L118
Generating Kausf
CK, IK, SNNi, and AUTN are encrypted in such a way as to form Kausf(AUSF Key). Alike XRES*, a key obtained from combining CK and Ik and stored into a variable k. Then, SNNi and RAND lengths are stored in an array of bytes using a Python library. Then, these outputs are combined with FC(it contains a byte object which is obtained from converting a hexadecimal string 6A) to form another temporary string variable ‘S’.
S and k are hashed using KDF hashing algorithm HMAC-SHA-256 to form Kausf.
Source: https://www.etsi.org/deliver/etsi_ts/133500_133599/133501/16.03.00_60/ts_133501v160300p.pdf
Section A.2
Source: https://github.com/blackberry/Python/blob/master/Python-3/Lib/hmac.py#L118
Generating kseaf

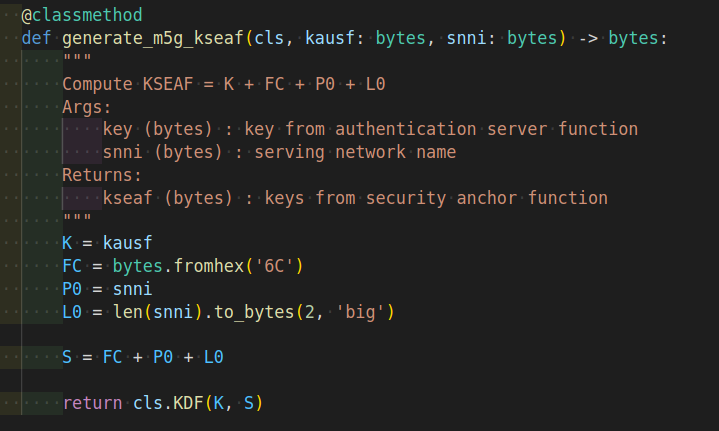

Kseaf(SEAF Key) is obtained by integrating Kausf and SNNi through a hashing algorithm. In this derivation, Kausf acts as key(k) whereas SNNi is still disintegrated into 2 forms, one stores the value, and the other stores the length of the SNNi in an array of bytes of size 2. The resultant output is assembled with the FC(it contains a byte object which is obtained from converting a hexadecimal string 6C) and stored in the variable ‘S’.
Then, S and key(Kausf) undergo the HMAC-SHA-256 hashing algorithm to generate Kseaf.
Source: https://www.etsi.org/deliver/etsi_ts/133500_133599/133501/16.03.00_60/ts_133501v160300p.pdf
Section A.6
Source: https://github.com/blackberry/Python/blob/master/Python-3/Lib/hmac.py#L118
